Marine piping may carry seawater for years, leaving little tolerance for poor material selection. Chlorides can accelerate corrosion, while excessive velocity may contribute to erosion-corrosion. Marine growth can also restrict passages or coat heat-transfer surfaces. Among marine-grade metals, a copper-nickel alloy offers a valuable combination of resistance to corrosion and long-term durability.
These properties have given copper-nickel a long-standing role among marine alloys. It is widely used where dependable resistance to seawater must be combined with mechanical performance or heat transfer.
What Is a Copper-Nickel Alloy?
Marine specifications most often center on two copper-nickel grades. Their common names indicate the nominal proportions of copper and nickel, although each specification permits a defined composition range:
- 90-10 copper-nickel (UNS C70600): Nominally 90% copper and 10% nickel. This is the more widely used grade for seawater piping and general marine service. It offers an effective balance of performance and relative economy.
- 70-30 copper-nickel (UNS C71500): Nominally 70% copper and 30% nickel. This higher-strength grade may be selected for more demanding flow or mechanical conditions.
Although they are sometimes discussed alongside nickel alloys, these materials are classified as copper alloys because copper remains the primary element. The grades are related, but they should not be treated as interchangeable.
Copper-Nickel Corrosion Resistance Begins at the Surface
Copper-nickel corrosion resistance comes largely from a thin, adherent film that develops during exposure to clean, aerated seawater. The film protects the underlying alloy and becomes more effective as it matures. Unlike an applied coating, this protective layer forms through the material’s interaction with its service environment.
A mature film gives copper-nickel good corrosion resistance in natural seawater and brackish-water service. These alloys offer strong resistance to pitting and crevice corrosion in seawater and are also highly resistant to chloride-related stress-corrosion cracking.
Proper operating conditions remain important. Like all corrosion-resistant metals, copper-nickel has a defined service envelope. Excessive flow velocity can disturb the protective film and contribute to erosion-corrosion. Local turbulence around changes in direction or restricted passages may create more demanding conditions than the average system velocity suggests.
Stagnant or polluted water containing sulfides can interfere with film formation. This concern deserves close attention during commissioning or after hydrotesting, when residual water may become stagnant. Initial exposure to clean seawater helps the protective film develop before full service.
How Copper-Nickel Helps Control Biofouling
Biofouling occurs when marine organisms accumulate on submerged surfaces or inside seawater equipment. Heavy growth can reduce the open area within piping. In condensers and heat exchangers, it may hinder heat transfer and increase cleaning demands.
Copper-nickel naturally discourages firm attachment by many marine organisms. This advantage is greatest when the surface is freely exposed and not affected by cathodic protection or galvanic coupling. Macrofouling may still develop under calm conditions, but attached organisms tend to adhere poorly and may be easier to remove. This behavior helps explain why copper-nickel is used in piping and hull-related marine applications.
Copper-nickel can help control biofouling, but it does not prevent it completely. Growth can still develop during extended periods of low flow or stagnation. Inspection and cleaning may remain necessary. Even with those qualifications, reduced macrofouling can help preserve internal flow and heat-transfer performance.
Long-Term Durability in Saltwater Service
Corrosion resistance and biofouling control work together to support durability. A stable surface film limits material loss. Reduced marine growth can also help keep internal passages open.
The history of these corrosion-resistant alloys is well established. The marine history of 90-10 and 70-30 copper-nickel reaches back to the early 20th century with their use in naval condenser tubes and saltwater lines. Both remain in use across naval and commercial vessels.
That service record offers stronger support for durability than a universal lifespan estimate. Actual longevity depends on the selected grade and operating environment. System design and maintenance practices also affect the result. Copper-nickel can provide extended service, but it is not immune to corrosion, wear, or fouling.
Common Copper-Nickel Marine Applications
Copper-nickel seawater systems are found throughout ships and offshore installations. Common copper-nickel marine applications include:

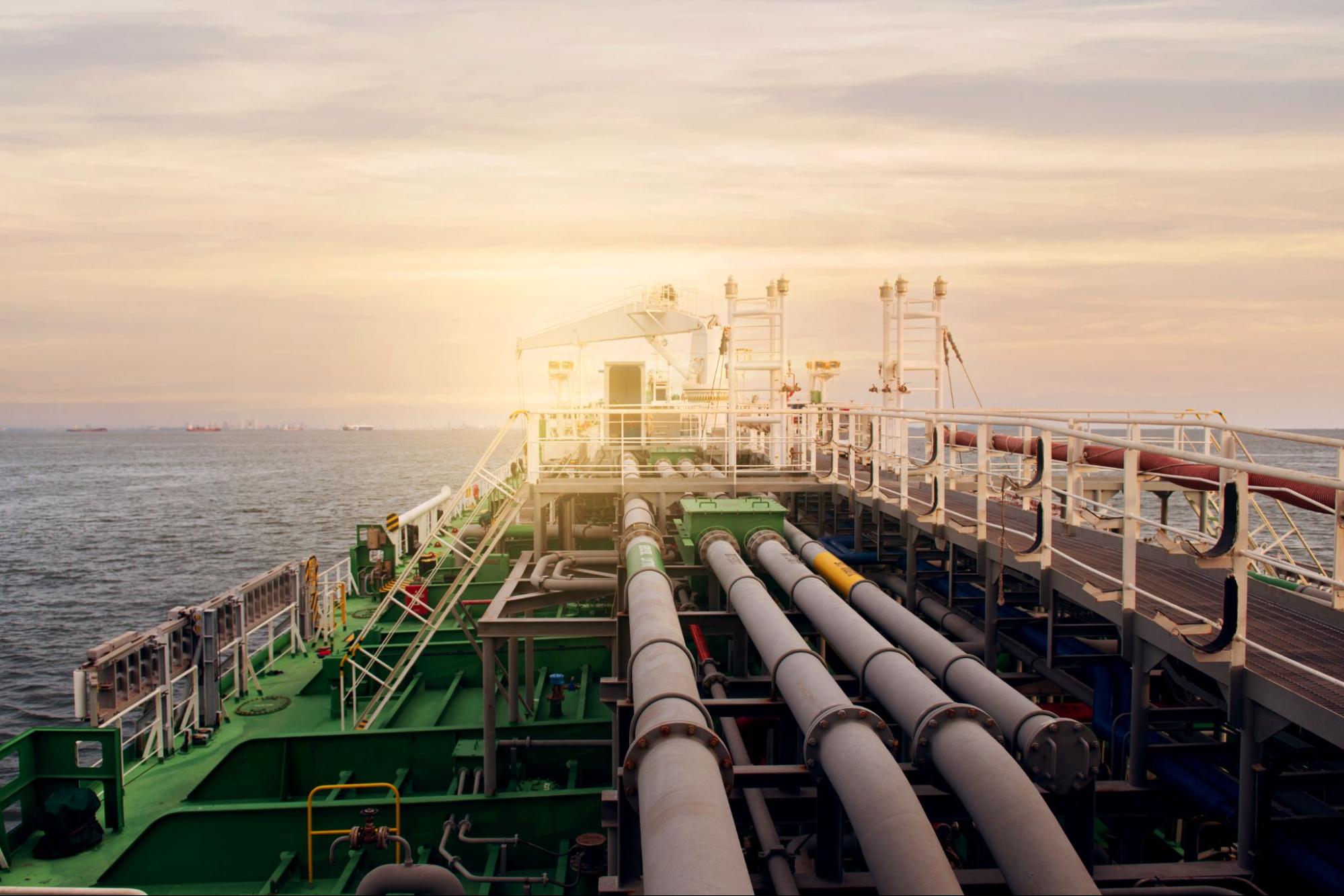

- Shipboard piping: Seawater cooling lines and fire mains
- Heat-transfer equipment: Condenser tubing and other heat exchangers
- Offshore systems: Firewater or deluge piping and splash-zone sheathing
- Desalination equipment: Seawater piping and selected heat-recovery components
The alloy may also be used in bilge and ballast systems. Oil coolers represent another established application.
In thermal desalination plants, grade selection may change from one part of the process to another. Water temperature and aeration conditions vary across the system, so a grade selected for piping may not automatically suit every heat-transfer section.
Is Copper-Nickel the Best Metal for Saltwater?
There is no universal “best” metal for saltwater environments because system conditions differ substantially. Copper-nickel is often specified for equipment that continuously carries seawater, especially when corrosion and fouling must both be managed.
The 90-10 grade suits many general piping systems. The 70-30 grade provides greater strength and may offer better resistance under some demanding flow conditions. A higher nickel content does not automatically make it the better choice.
Material selection should account for:
- Water chemistry and operating temperature
- Expected velocity and local turbulence
- Pressure and mechanical requirements
- Required product form and governing specification
The general label “marine grade” does not provide enough information for procurement. Buyers should specify the complete alloy designation, temper, dimensions, and applicable material standard.
How Other Marine Alloys Fit In
Copper-nickel is one family within the wider category of marine alloys. Naval brass is a distinct brass alloy used for selected hardware and sheet or plate applications. A bronze alloy may suit components that require a different balance of wear performance and machinability.
These corrosion-resistant alloys are suitable for marine environments under the right conditions, but they are not direct substitutes for one another. The component’s exposure and operating demands should guide the final selection.
Source Copper-Nickel for Marine Projects
Lewis Brass & Copper supplies a variety of copper-based materials for marine use, including Alloy 706 copper-nickel coil. Customers can request material application assistance when reviewing alloy or temper requirements. Our team can also help address dimensional needs and special mill orders.
